Modder Fixes RTX 5090 Power Connector With Custom Distributor
A Reddit user has showcased an invasive hardware modification designed to combat overheating issues on the 12VHPWR connector of an RTX 5090 graphics card.
Radwan AbdulhadiEditor and technology writer
Tackling Overheating Power Connectors

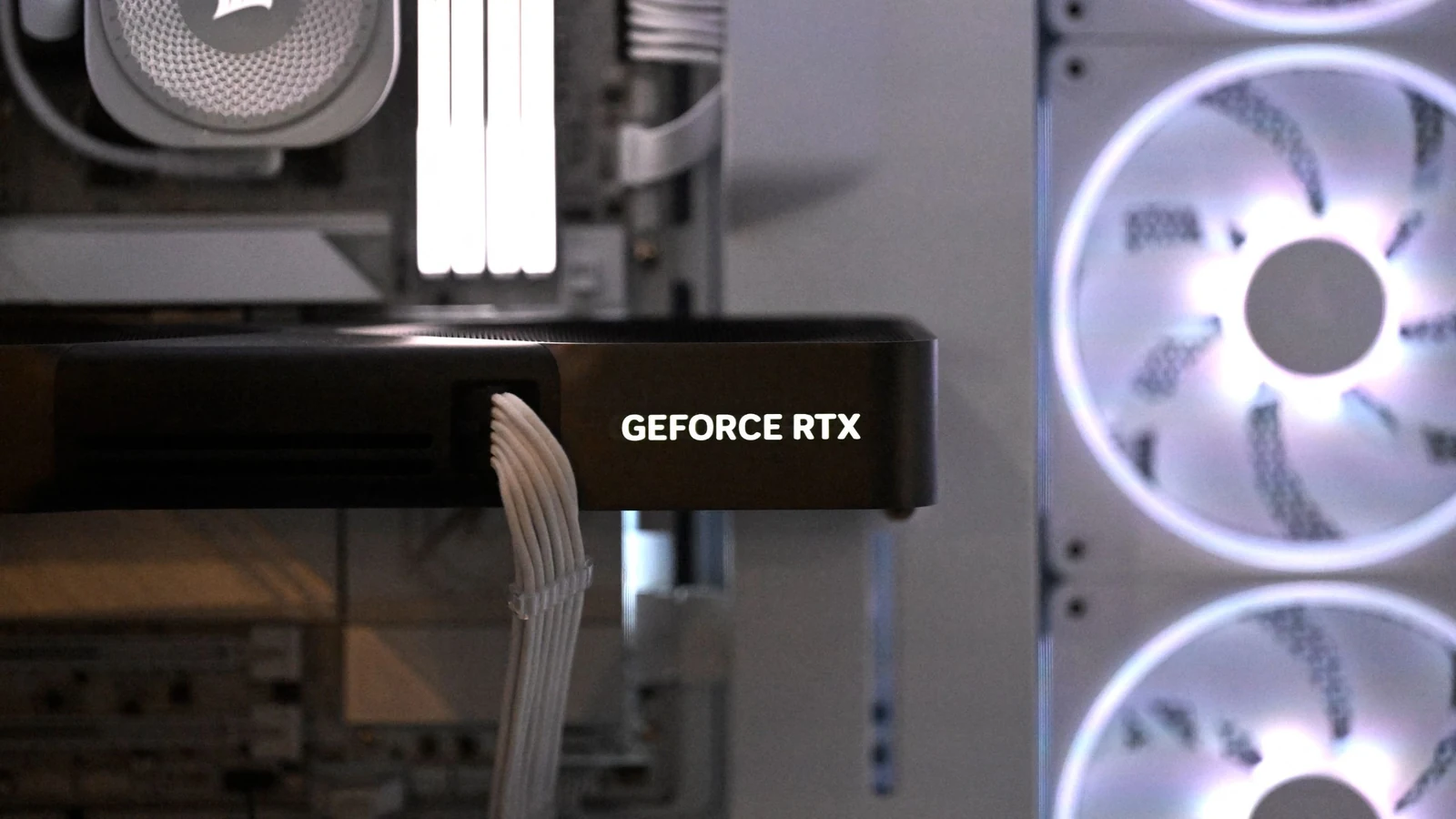

The challenges surrounding high-current graphics card power delivery have prompted creative hardware interventions. Reddit user u/DallasGrave recently shared a fix for his RTX 5090, one of the best graphics cards, whose 12VHPWR connector was overheating. Along with the revelation, he published an image of a module screwed directly onto the back of his GPU.
The custom module serves as a power distributor designed to split the current load across more wires, thereby lowering overall connector temperatures. According to available details, u/DallasGrave is linked to GRAVEPC.com, an outlet that primarily focuses on custom cooling solutions tailored for small form-factor personal computers.
Understanding the 16-Pin Connector Design Flaws
The fundamental design of the 16-pin connector has drawn criticism and plagued numerous Nvidia graphics cards. Because these cards pull substantial current through what is essentially a 12-pin connector layout—with four smaller pins acting as sensors and the remaining 12 split evenly between six +12V and ground connections—margins for error are slim. Although the interface typically utilizes high-current-rated 16AWG cables intended to safely handle up to 600W, real-world issues frequently emerge.
Reports indicate that many melting connector incidents stem from poor connections where individual pins fail to make sufficient contact. This shortcoming generates high resistance, localized heat buildup, and uneven current distribution. Older multi-8-pin connector configurations rarely experienced these catastrophic failures due to significantly higher safety margins, whereas modern cards demand higher current levels routed through far fewer wires.
Inside the Custom Hardware Modification

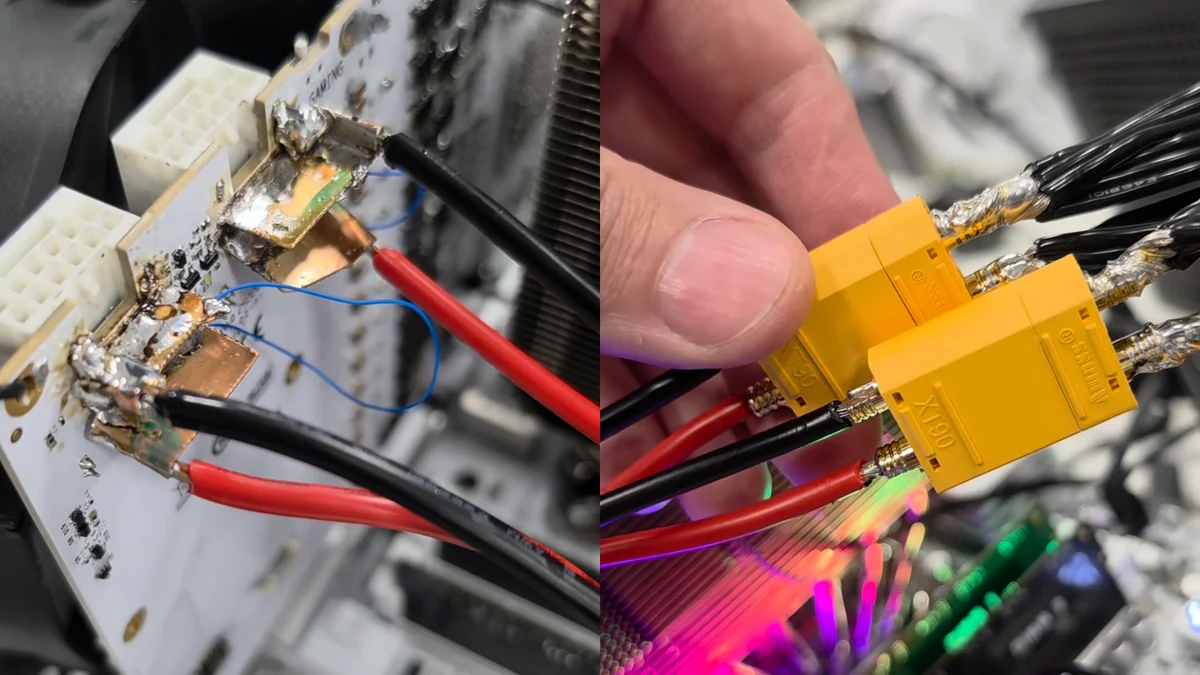

To bypass these inherent design vulnerabilities, the modder soldered extra connections directly to the power rails on the RTX 5090’s printed circuit board (PCB). These wires are routed directly into a custom power distributor. This specialized distributor features an internal PCB where the wires terminate and two female 8-pin connectors are securely housed.
The physical housing of the distributor appears to be custom-built to fit this specific graphics card layout, showcasing characteristic signs of resin printing. While the modder executed a clean and visually appealing layout compared to other power modifications seen across the industry, the procedure remains strictly invasive because it requires direct soldering to the GPU power rails.
Stress Testing and Warranty Considerations
To evaluate the efficacy of the dual 8-pin modification, the hardware underwent an intensive validation process. During a rigorous 48-hour stress test where the graphics card was driven at full load pulling 550W continuously, the modder reported that the connection point never crossed 40 degrees Celsius.
Regarding commercial viability and user support, the modder addressed community inquiries regarding manufacturer backing. When asked if the modification would be covered under PNY’s warranty, he stated that they are a PNY partner and that buyers would eventually be able to purchase a PNY-specific card featuring a similar modification directly from them with full warranty coverage. However, observers advise caution, noting that third-party cable melting issues have historically faced complicated manufacturer warranty policies.
Detailed coverage of this inventive cooling and power distribution breakthrough can be found on Tom's Hardware, outlining the ongoing community efforts to address modern hardware thermal limitations.
